Melt Blown Polypropylene Filter With Customized Logo

Melt blown polypropylene filter with customized logo

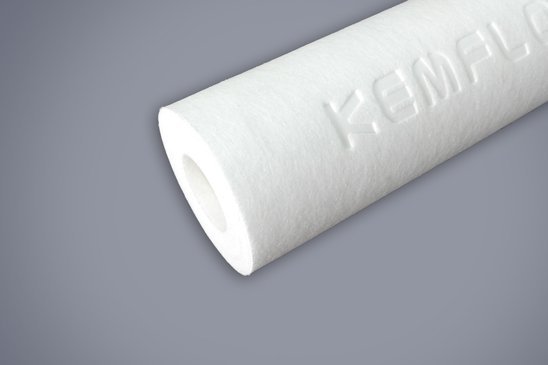

The melt blown polypropylene filter cartridge with the hot press Logo on surface.

Melt Blown Polypropylene Filter With Customized Logo

General description

Melt Blown Polypropylene Filter With Customized Logo is constructed by three layers of polypropylene, which has longer service life compared with the normal construction. It can reduce the filtering resistance and enlarge the water flow much. The uniform space of fiber can achieve an excellent filtering effect. The filter cartridge is only made of polypropylene, which has the resistance to chemical reagents for both organic solvent and inorganic solvent.

Features and benefits

  • Meets FDA requirements for food and beverages contact
  • All construction without adhesives, binders, resins or silicone, no media migration
  • Gradual changing deep filtration structure with loose outside and close inner
  • High dirt holding capacity and flow rate in the low-pressure drop
  • Excellent chemical properties of acid and alkali resistance
  • High removal efficiency
  • Lower cost and long service life
  • Good compression and impact resistance
  • Wide range of lengths and micron ratings


  • Reverse osmosis pre-filtration
  • Industrial water treatment
  • DI water and ultra-pure water pre-filtration
  • Whole house water treatment

Production range

Part Item Description
Specification Materials Polypropylene
Length 10”,20”,30”, 40”,  50”, 60”,70”
ID Ф28 mm
OD Ф115 mm
Removal rating 1~50μm
Weight 400~900 g  (Adjustable)
Surface Smooth / Logo
Performance Operating temperature 60℃(140℉)
Other Packing Shrink-wrapped individually or up to customer’s request
