String wound filter cartridge is a kind of deep filter element, which is used for fluid filtration with low viscosity and impurity content.

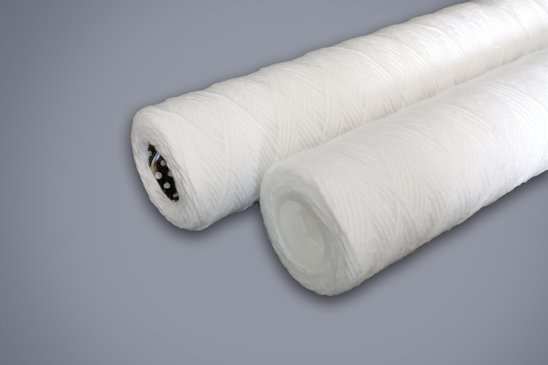

String wound filter cartridge is a kind of deep filter element, which is used for fluid filtration with low viscosity and impurity content. It is made of textile fibers (polypropylene yarn, degreased cotton yarn, etc.) tightly wound on the porous core (polypropylene or stainless steel materials) according to a specific process. It has a dense honeycomb-like structure, which can remove suspended matter, particles, rust and other impurities in the fluid. It is widely used in the filtration of tap water, beverage, industrial water, domestic water, electroplating solution, chemical liquid, oil, paint, etc.
|Materials of construction||Filter Media||Polypropylene yarn|
|Absorbent cotton yarn|
|Stainless steel 202 / 304 / 316 / 316L|
|End cap||DOE / 222 / 226 / SS screw|
|Performance||Filter grades||0.5, 1, 5, 10, 20, 30, 50, 100, 150 μm|
|Max. Operating temperature||70℃ (Polypropylene yarn and polypropylene core)|
|90℃ (Polypropylene yarn and stainless steel core)|
|120℃ (Cotton yarn and stainless steel core)|
|Maximum forward differential pressure||0.5MPa|
|Recommended change-out differential pressure||0.2Mpa|
|Lengths||5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″|
|Inside diameter||Ф28 mm, Ф30 mm|
|Outside diameter||Ф55~115 mm|
